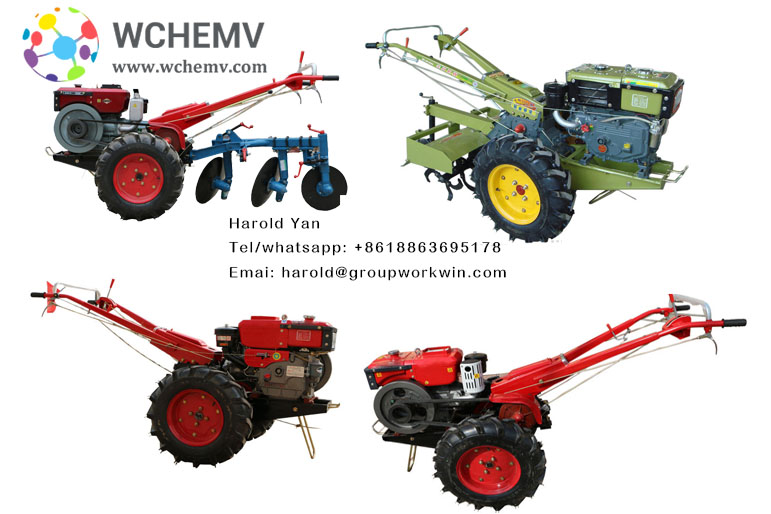

Superior quality walking tractor

Agricultural walking tractor


Walking tractor is a kind of small tractor, which is popular in Chinese villages and towns as a means of transport and agricultural machinery. It is powered by diesel engine. Its compact, flexible and powerful characteristics make it very popular with farmers.

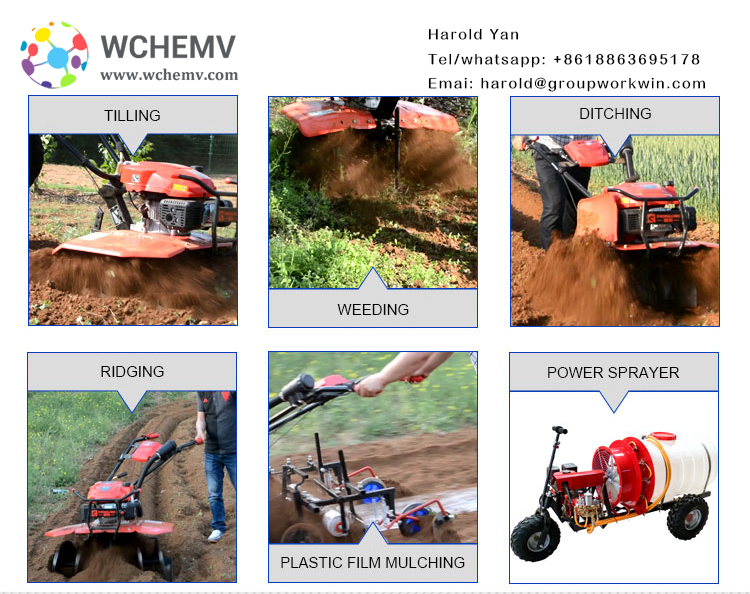

1. Tilling

2. Weeding

3. Ditching

4. Ridging

5. Plastic film mul ching

6. Power srrayer


Model			Unit				SX1500
Structure weight			kg				290
Overall dimensions (LxWxH)			mm				2170x 845 x 1150
Type							single cylinder, horizontal
Power							10.5KW/15HP
Travelling speed		Forword				Km/h		I 2-3, II 5-7, III 14-18
		Reverse						R 11-13.5
The wheel base			mm				680 ~ 740 (Stepless adjustment)
Type size							6.00-12( w-tire)
Minimum ground clearance			mm				210
Transmission			/				two belt
The central drivetrain Transmission							cylindrical gear
Drivetrain final drive							single-stage spur gear circle column wheel drive
The steering mode							rodents nested together
Rodents nested together							ring-up
Fuel tank pressure			MPa				0.098
The fuel tank volume			L				11
Engine lubricating oil			L				1.5-2
Gearbox lubricants							3-3.3
The cooling water injection amount							12-13
Transmission	Clutch style			/	triple-plate,single-action,standard,dry-friction,long engaging friction
	Gearbox style			/	main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift, (3 + 1)×2 composition formula circular gear wheel column
Type of tractor							dual-purpose for both traction & drive



1) Simple structure in linear type ,easy in installation and operation.

2) Adopting advanced high quality in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.



Type: by sea or by air

Delivery time :10 days after we get the payment

Size based on orders



Changyi Snow acridine Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.



1. are you a production plant or a trading company?

Answer: we are a production company.

2. what is the delivery time?

Answer: we have stock. Usually we can deliver the goods immediately.

3. what is the warranty time?

Answer: gear box 2 for one year, and 1 years for other areas.

4. what kind of walking tractor do you produce?

We can provide walking tractors from 7hp to 18hp.

5. is there a discount price?

The discount depends on the quantity you purchase.
